• Magnetic Trap (SMT – 750)

Applications

  • Chemical Processing Plants
  • Pharmaceutical Industries
  • Food Processing Industries
  • Water Treatment Plants
  • Oil & Gas Industries
  • Powder & Material Processing
  • Industrial Process Lines

Product Details

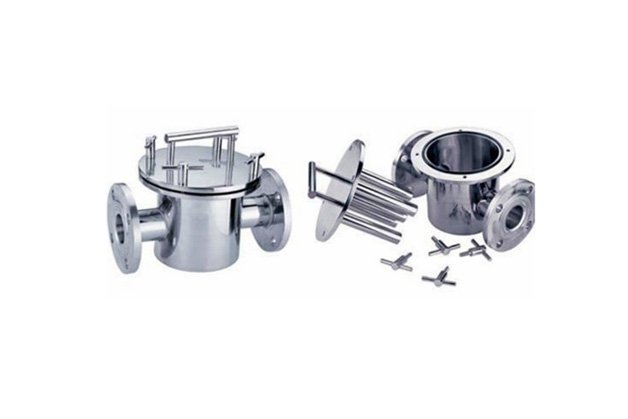

Magnetic Trap (SMT – 750)

Sasthan Engineers supplies high-quality Magnetic Traps – SMT – 750 designed to efficiently remove ferrous particles, iron contaminants, and magnetic impurities from liquids and process materials. The magnetic trap uses powerful permanent magnets to attract and retain unwanted metallic particles, helping protect pumps, pipelines, valves, and downstream equipment. These magnetic traps are widely used in chemical, pharmaceutical, food processing, water treatment, oil, and various industrial applications where effective magnetic separation and product purity are required.

Features

  • High-strength magnetic separation
  • Efficient ferrous particle removal
  • Heavy-duty construction
  • Corrosion-resistant design
  • Low maintenance operation

Product Specification Details

Technical Specification

Parameter Specification
Product Name Magnetic Trap
Type Magnetic Particle Trap
Model Number SMT – 750
Size 15NB to 200NB [1/2″ to 8″]
Pressure Rating PN 10 / PN 16 / As per Customer Requirement
Temperature Up to 150 Deg
Body Material SS 304 / SS 316 / CS
Magnet Material Permanent High-Intensity Magnet
Magnetic Strength As per Application Requirement
Gasket PTFE / EPDM / Graphite
End Connection Flanged / Screwed
Mounting Horizontal / Vertical
Surface Finish Polished [SS], Painted [CS]
Application Water, Oil, Chemical & Industrial Process Fluids

Why Sasthan Engineers

We provide custom-engineered solutions backed by quality-focused manufacturing, reliable delivery support, and expert technical selection assistance, ensuring long-term industrial performance across a wide range of applications. “Delivering Clean Flow with Reliable Filtration Solutions.”

Extra Equipment Options

Optional Accessories

  • Ball Valves / Needle Valves
  • Pressure Gauges
  • Drain Valves
  • Safety Ball Check

Enquiry

Enquiry / Ordering Information

  • Type
  • C.C.Distanc
  • Connection Size
  • Material of Construction
  • Application
  • Operating Pressure & Temperature
  • Qty
