Applications
- Water Pipelines
- Cooling Water Systems
- Chemical Plants
- Oil Pipelines
Working Principle
- The Basket Strainer Works on a Simple Filtration Mechanism
- Fluid Enters the Strainer Through the Inlet
- The Fluid Passes Through the Perforated Basket Screen
- Solid Particles Are Trapped Inside the Basket
- Clean Fluid Flows Through the Outlet
- Dirt Accumulates Inside the Basket
- Basket is Removed and Cleaned Periodically
- This Ensures Continuous Protection of Downstream Equipment
Installation Guidelines
- Install in Horizontal Pipelines
- Flow Direction Must Match with Arrow
- Provide Enough Space for Basket Removal
- Install Pressure Gauge Before and After Strainer
- Provide Drain Connection
- Avoid Vibration
Product Details

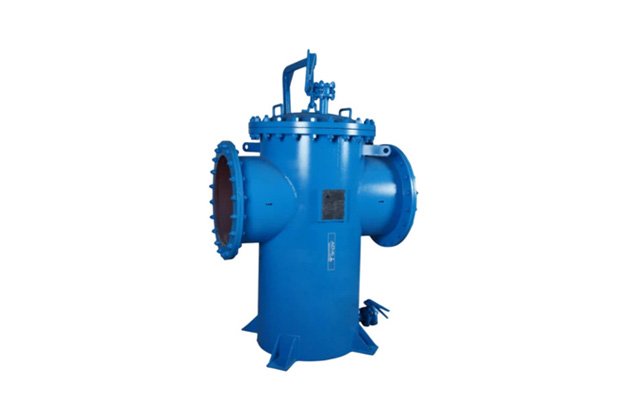

Basket Type Strainer (SBSTR – 750)
Sasthan Engineers Basket Type Strainers are designed for high flow liquid filtration applications where large dirt-holding capacity and low pressure drop are required. These strainers provide efficient removal of solid particles, rust, scale, and debris from pipelines, ensuring smooth and uninterrupted operation of pumps, valves, meters, and process equipment.
Sasthan Basket strainers are widely used in water, chemical, oil, cooling water, process fluids, and industrial liquid pipelines due to their large filtration area and easy maintenance.
Strainer Pressure Drop Guide
Basket Strainers are designed to minimize pressure loss.
Factors Affecting Pressure drop
Flowrate
Fluid Viscosity
Mesh Size
Dirt Accumulation
Strainer Size
Recommended Pressure Drop
Clean Basket: 0.1 to 0.3 Bar
Dirty Basket: 05Bar cleaning required
Features
- Large Filtration Area
- Low Pressure Drop
- High Dirt Holding Capacity
- Easy Basket Removal
- Top Cover Opening
- Heavy-Duty Construction
- Suitable for High Flow Liquids
- Replaceable Stainless Steel Basket
- Long Service Life
- Leak-Proof Cover Sealing
- Drain Plug for Cleaning
- Suitable for Continuous Operation
Types of Basket Strainers
- Simplex Basket Strainer
- Single Basket
- Used Where Shutdown is Acceptable
- Economical
- Easy Maintenance
- Common in Water and Process Lines
